Product name | Pop-up floor socket |
Manufacturer | Deysen |
Brand name | DS-ITCS |
Origin | Zhejiang China |

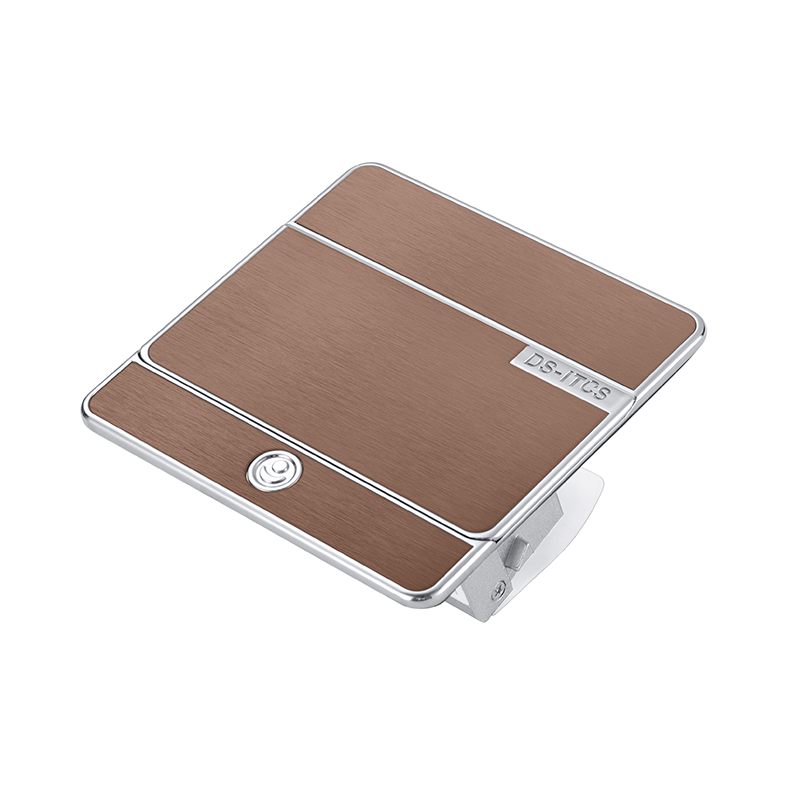

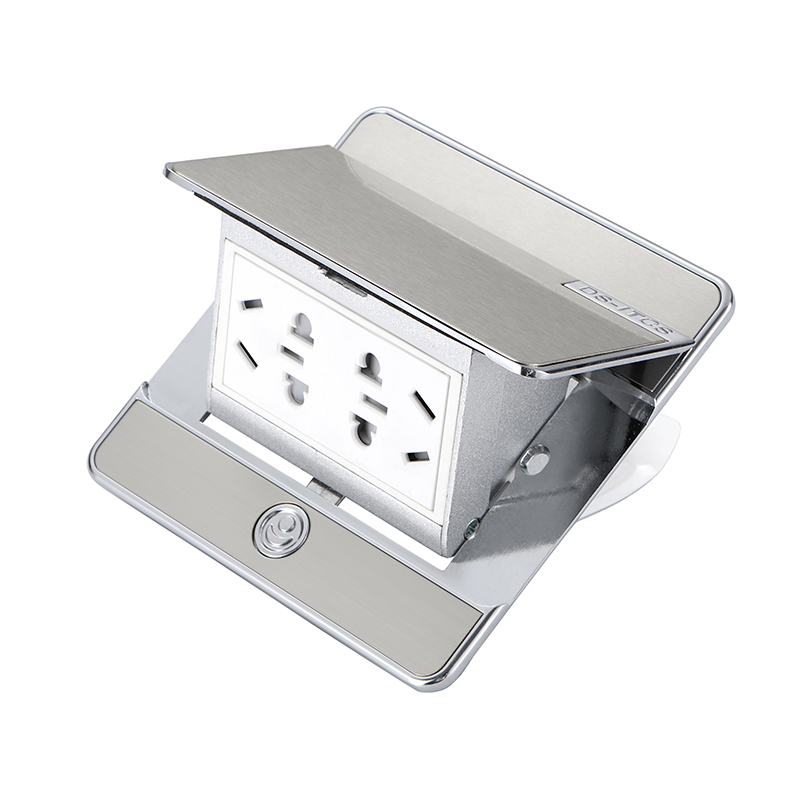

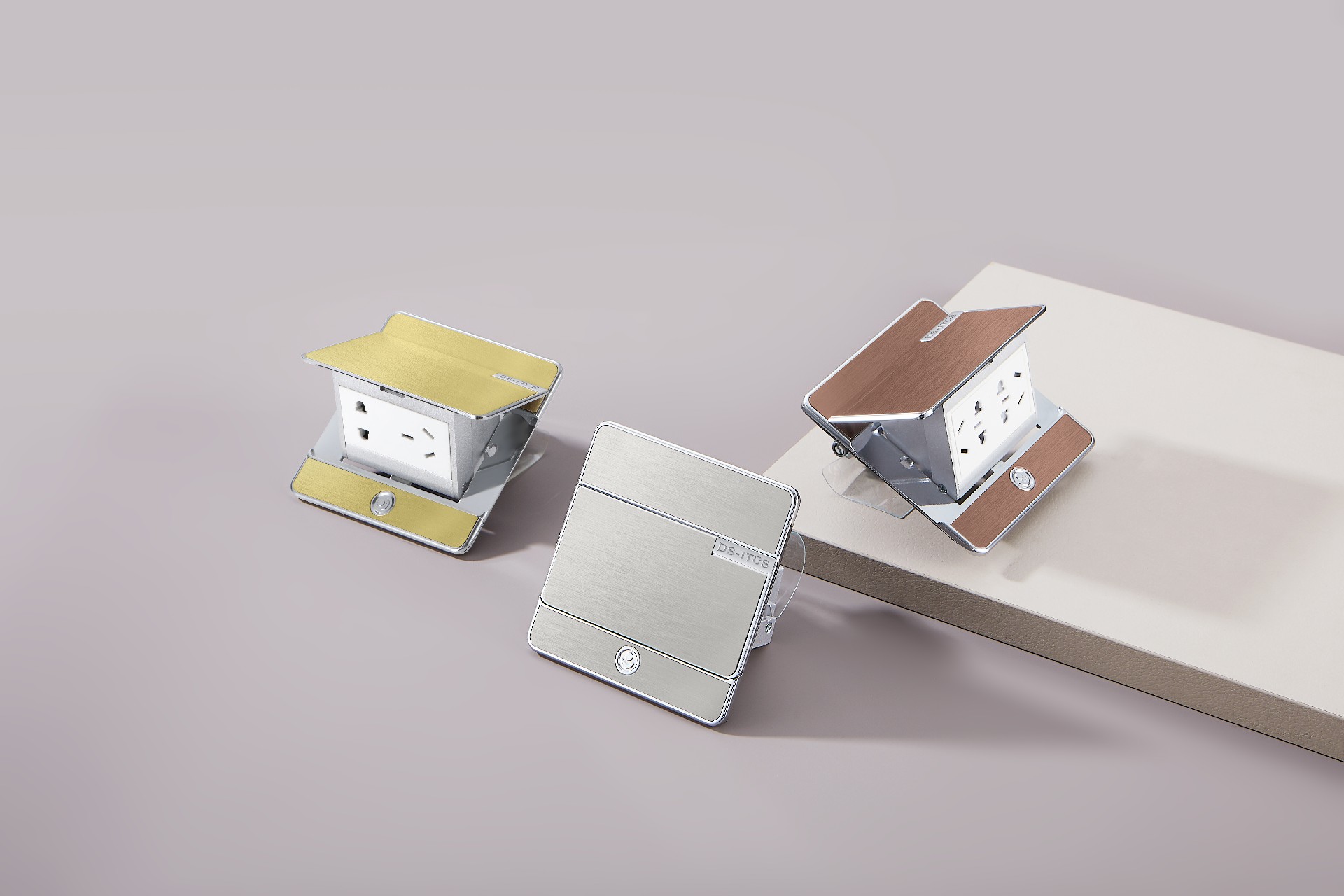

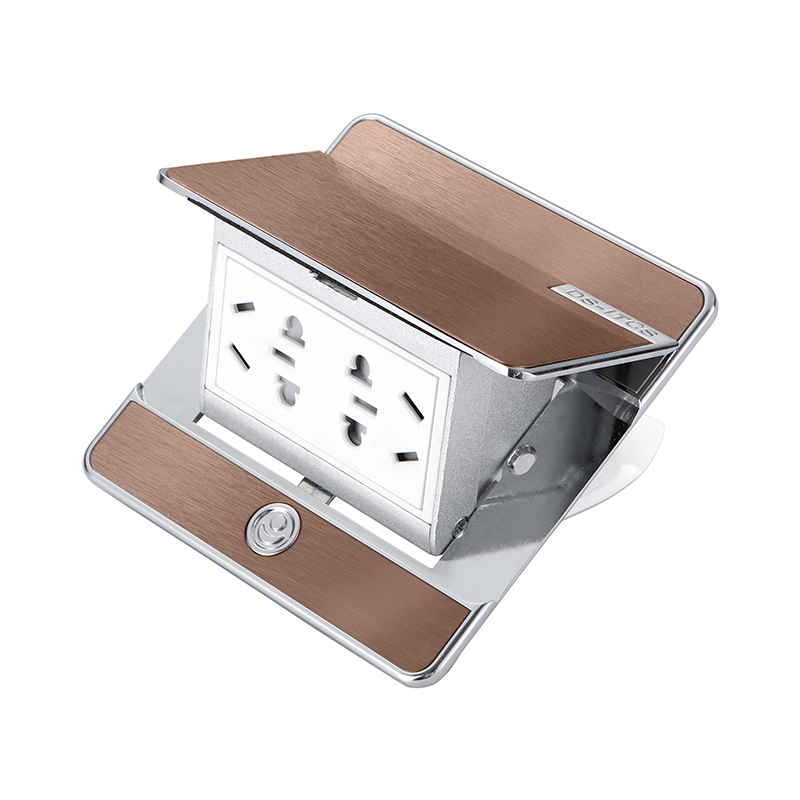

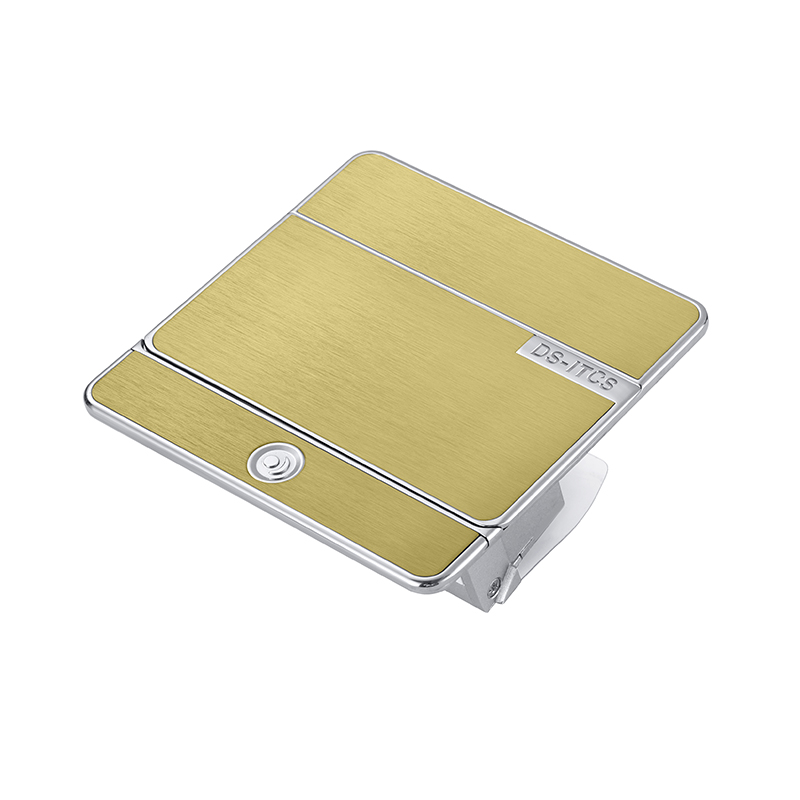

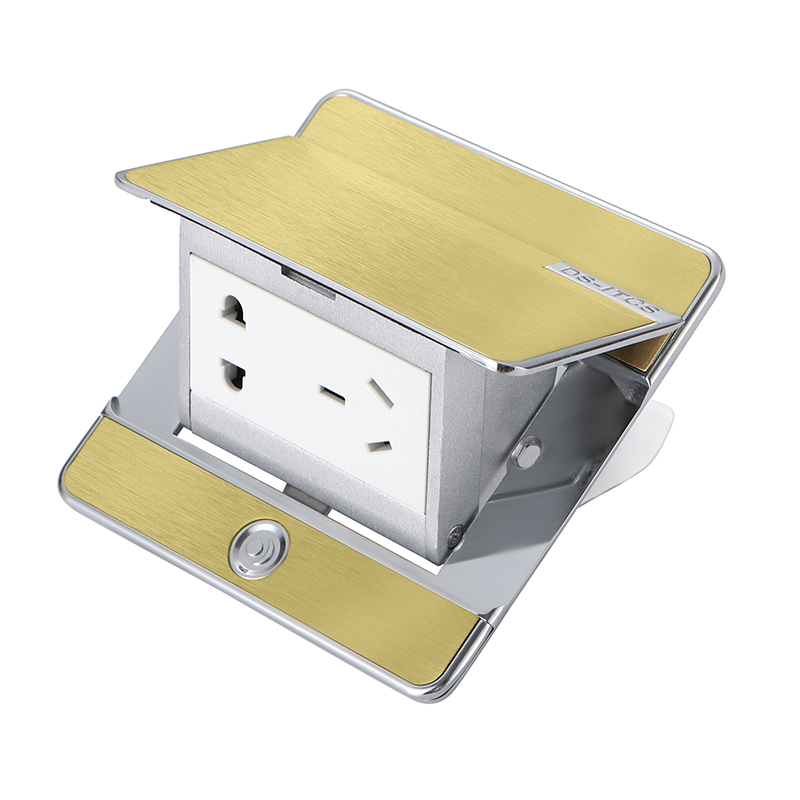

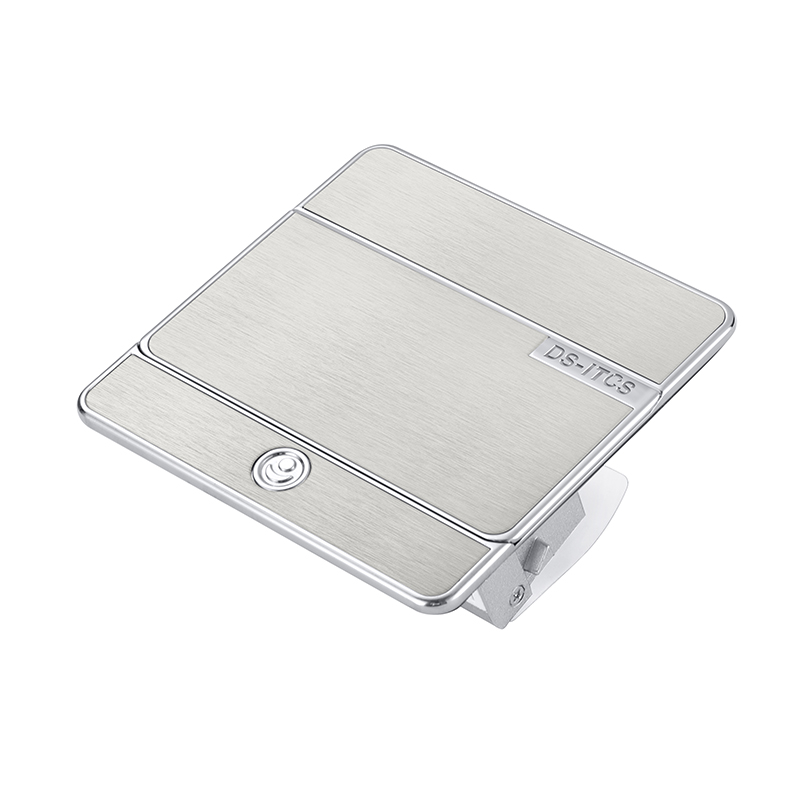

Panel material & color | Rose gold-Zinc alloy. Gold-Copper sheet. Silver-Stainless Steel. |
Base box material | iron sheet with tensile strength, electrophoresis surface treatment |
IP rating | IP54 protect against dust and water splash |
Flame retardant grade
| 》UL94 V0
|
Rated voltage | 250V |
Rated current | 10/16A |
45×45mm Socket module | CN GB 5 holes socket. NEMA UL socket Schuko EU socket UK BS1363 socket |
45×22.5 mm Multi media module | USB type-C. RJ45 HDMI LAN |
open method | Soft pop-up, the floor socket can be opened automatically by pressing. |
Installation method | Pre embedded type: The bottom box needs to be pre embedded in advance (usually at a depth of 60-80mm). |
Surface mounted: Directly installed on the ground (suitable for renovation projects). | |
Panel size | 120×120mm |
Inner bracket size | 67.5×45mm |
Install depth | 50-100mm |
Operation life | 5000 |
use environment | 0 ° C-40° C |
| GB/T2099.1-2001, GB/T1002-2001 |

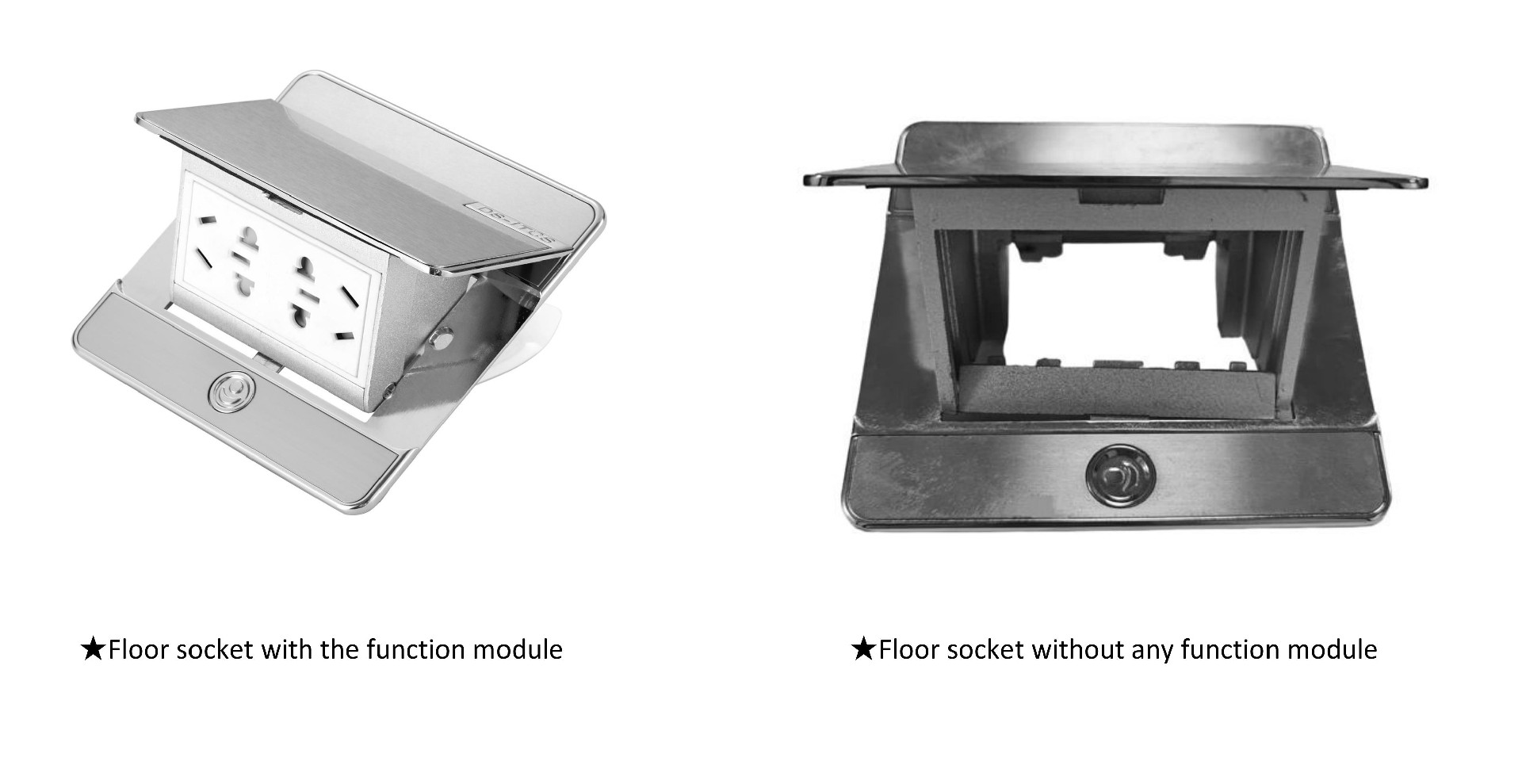

OEM&ODM service | Accepted. Can be ordered with or without the functional module. |

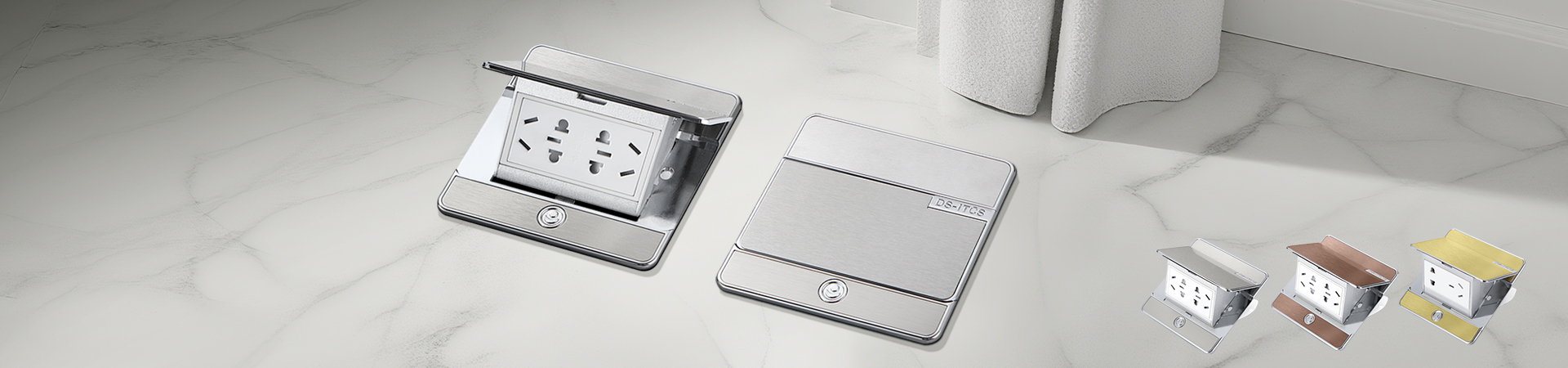

Suit for Concrete Floor, Wood Floor, Marble Floor At Home, Office, Airport, Hotel, Resturant Etc.
