55mm simple track surface mounted Fengrun type electric track-Deysen Intelligence Technology (Zhejiang) CO.,LTD.

55mm simple track surface mounted Fengrun type electric track

1.Movable power track sockets, can be divided into two parts-track modular & adapter modular.
2.Track modular: 6065 aerospace aluminum shell, surface treatment powder coating or anodic oxidation，track length and color is customized.
3.Adapter modular: a variety of electrical standard adapters available, including plug-in adapters and USB fast charging adapter. Adapters can be freely added, moved, removed and repositioned along the track.
4.Usually one track can be equipped with 5-6 adapters, plug-in adapter or USB adapter flexibly matched.
5.Popular application: Widely used in all sectors of retail, residential, commercial and industrial.

Products Details

Product features:

Every track can be equipped with several adapters.
The adapters can be freely added, removed or repositioned as per need.
Multiple electrical devices can be used simultaneously without waiting.
Higher efficiency and greater convenience.

product parameters:

Product name	2.0 power track socket, 55mm width,surface mounted
Manufacture	Deysen
Brand name	DS-ITCS
Origin	Zhejiang China
Application	Retail, residential, commercial and industrial.
Importance	Use Deysen power track only with Deysen adapters, don’t use with any other brand.

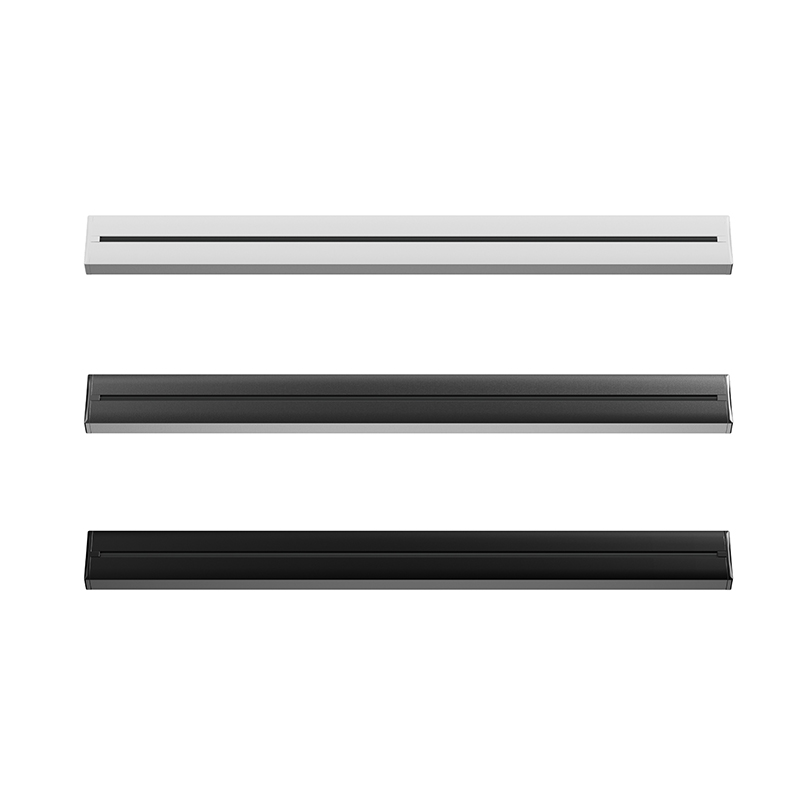

■Track modular：55 simple track,surface mounted.
Mounted method	Surface mounted (can be installed on wall or desktop)
Length	400/500/600/800/1000mm
Width	55mm
Height	18.5mm
Final Height with adapters	43mm
Ratings	32A 250V
Rated power	8000W max
Color	White/Grey/Black
Temperature	-20℃-55℃
IP grade	IP20
Housing Material	6065 aerospace Aluminum
Insulation Layer material	PC
Earth connected material	Phosphor bronze/brass/Stainless Steel
L&N connected material	Brass
Housing treatment	Powder coating Anodic oxidation
Track packaged	9pcs/ctn

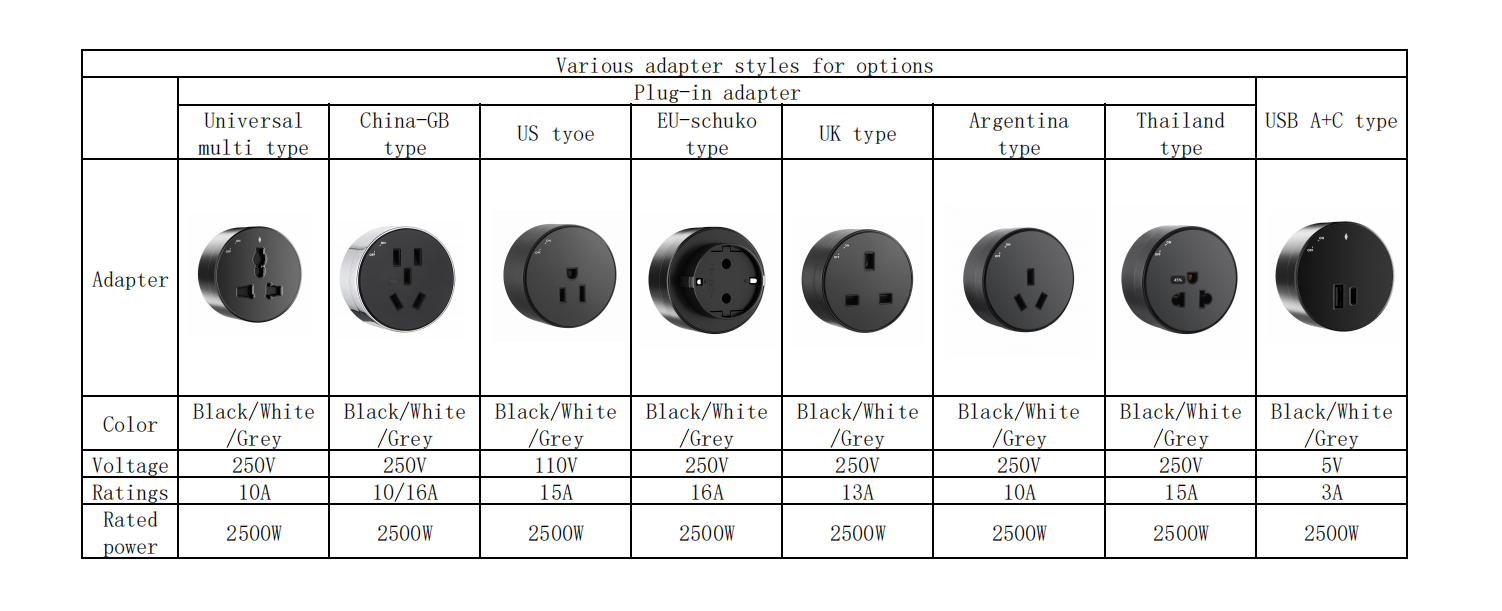

■Adapter modular，international standard adapters
Case	PC/Zinc alloy
Color	White/Grey/Black
Shape	Round/square
Size	Φ60.5×27.4mm (round) 58×58×27.4mm (square)
Adapters available	China GB US EU(Shuko) UK Argentina Thailand Universal multi USB charging A+C
Adapters equipped	Every track can accommodate different adapter qty according to its length, add, move or remove adapters as per you need.
Usage	Rotate clockwise 90°to power on, rotate counter clockwise 90° to power off.it can slide parallel along the track when the power is off.
Adapter Packaged	100pcs/ctn.

OEM selection

Why Deysen

1. a variety of power track styles for options.


2.track surface treatment: powder coating,scratch resistant, easily clean.


3.The adapters with a friendly indicator light during use.


4.Support max 8000W & 32A loading,


5.Safety protect
